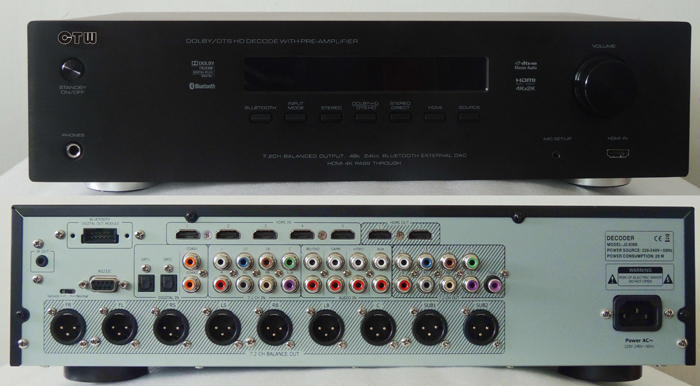

HD-7100
Update: 2015/4/16 View:
- Brand: CTW
- Type: HD-7100
- Price: RMB
- Promotion: RMB ( 0 Customers Bought)
Introduction
Features
* HDMI 1.4 (1080P)
* Aluminum Panel, VFD display
* On Screen Display (OSD)
* High performance Pre-amplifier
* Low Magnetic Flux Leakage Massive Toroidal Transformer
* Power Consumption during Standby <0.5W
(Complied with EuP standard)
* 32 bit DSP decoding:Dolby True HD / Dolby Digital Plus / Dolby Digital /DTS-HD Master Audio / DTS ES)
* Speaker Auto-Setup
* 10 Band P-EQ for Each Channel
* Bass Management and Auto-Setup
* L/R Channel Balance Adjustment
* Inputs Sensitivity: 250 mV
* Inputs Impedance: 47 kohm
* Dolby high Performance Class A
* Full remote control
Bluetooth Module Feature and Specification:
Below data is tested under these formats: AAC / WAV / FLAC / APE
* Sampling: 44.1 k or 48 k/24 bit
* THD: 0.003 at 1 k
* S/N: 95 dB
* Frequency Range: 20 Hz - 20 kHz, ± 0.5 dB (MP3 frequency response below 16 kHz)
* Remote handset function:Play/Pause, Forward Skip/Reverse Skip, Disconnect
* Transmission Distance: over 10 M(barrier free)
* Bluetooth Size: 49.6 (L) x 29(W) x 13.8(H) mm
Terminal
* HDMI: 6 in, 2 out
* Digital Coaxial: 2 in
* Digital Optical: 2 in
* Bluetooth digital: 1 in
* Analogue Audio Inputs: 4sets (BD/DVD, GAME, VIDEO, AUX)
* 7.2 Line out, 2 Subwoofer Line out (after Dolby, DTS decoded)
* 7.2 Balance Line Out
Mains Voltage: 220-240V~50Hz
Dimension: 430 (L) x 240 (W) x 115(H) mm
