Features
Applications
Flat,fully load-independent frequency response
Low output impedance
Very low,frequency-independent THD
Very low noise
Fully passive loop control
Consistent top performer in listening trials
Runson unregulated +/-rails
Pop-free start and stop control
Single Ended audio input
Overcurrent and overvoltage protection
Monitor loudspeakers for recording and mastering
studios
Audiophile power amplifiersfor professional and
consumer use
Public Addresssystems
Home theatre systems
Active loudspeakers
PA systems Description
The B150 D amplifier module is a self contained high contained high-performance class D amplifier
intended for a wide range of audio applications,ranging fromPublic Address systems to ultrahigh -fidelity
replaysystems for studio and home use. Chief distinguishing features are flat frequency response
irrespectiveof load impedance,nearly frequency-independent distion behaviour and very low radiated and
conductedEMI.Control is based on a phase-shift controlled self-oscillating looptaking feedback only at
the speaker output.
H 4

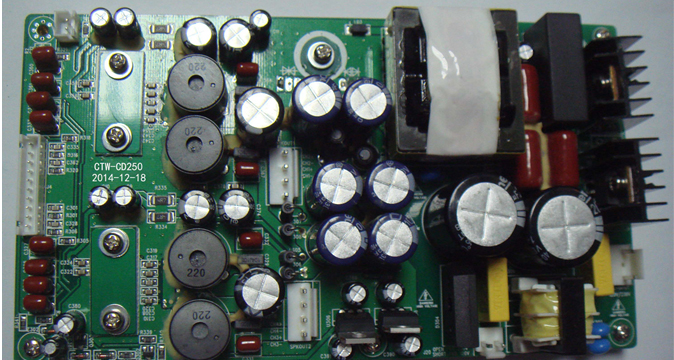

High Efficiency Power Amplifier Module
CTW-CD250
